Máy laser cắt vải ST160130LD
Thông tin chi tiết

Máy laser cắt vải ST160130LD.

Vision laser cutting machine is ideal for cutting digital printing sublimation textile fabrics of all shapes and sizes.

Cameras scan the fabric, detect and recognize printed contour, or pick up on printed registration marks and cut the chosen designs with speed and accuracy.

A conveyor and auto-feeder is used to keep cutting continuous, saving time and increasing production speed.



How Vision Laser Cutting Works

Vision system identifies the printed sublimation pattern, and then create cutting path data automatically and complete cutting process so as to perform continuous recognition cutting for entire roll of printed fabrics without manual intervention.

Vision System four functions

A. Automatic contour extraction;

B. Printed Marks positioning cutting;

C. Stripes and Plaids matching;

D. Irregular fabric marker making


● Detection of printed fabrics directly from rolls, without any preparation. High precision detection.

● Fully automatic process, without manual intervention.

● Large format flying recognition. Less than 5 seconds for scanning an entire cutting window.

● Good at cutting complex graphics. For the fine and detailed graphics, the software can extract the original graphics according to the position of registration marks and then cutting.

● Good at cutting stretch fabrics. Cutting edge is clean, soft, smooth, automatic sealing.

Machine Features

• Cutting bed adopts full steel welding structure. High reliability.

• Semi-fixed flying laser beam route. High cutting speed, high efficiency.

• Top brand motion guide rail and belt. High performance.

• Vision system is equipped with high quality camera, LED lamp, control cabinet and encoder, ensuring the stability of the vision system.

• Conveyor working table with automatic feeding, realize cutting with continuous material feeding.

• Vacuum conveyor working platform ensures material smooth absorption on laser flat bed.

• Top and bottom exhausting systems

• This machine can be used for printed fabric positioning cutting, also for ordinary laser cutting, cost-efficiency with two purposes.

CO2 Flatbed Laser Cutting Machine Optional Configuration

Auto Feeding System (multiply types)

CO2 RF metal laser tube (different powers optional)

Large Area Recognition System

Projection System

Red light positioning

Smart nesting

Pattern digitizing steel frame

Recognition, Pattern digitizing steel frame

Tech Specs

Model No.

ST-160130LD+80AF Vision Laser Cutting Machine

Laser Type

Co2 glass laser

Co2 RF metal laser

Laser Power



Working Area

1600mmX1300mm (62.9″ X 51″)

Scan Area

1600mmX800mm (62.9″ X 31″)

Working Table

Conveyor working table

Working Speed

0-600 mm/s

Positioning Accuracy


Motion System

Offline servo motor control system, LCD screen

Cooling System

Constant temperature water chiller

Power Supply

AC220V±5%       50/60Hz

Format Supported

AI, BMP, PLT, DXF, DST, etc.

Standard Collocation

1 sets of top exhaust fan 550W, 2 sets of bottom exhaust fans 1100W, 2 German cameras

Optional Collocation

Automatic feeding system

Space Occupation

4316 X 3239 X 2046mm (170” X 127” X 80” )

Environmental Requirement

Temperature Range: 10—35℃

Humidity Range: 40—85%

the use environment of no inflammable, explosive, strong magnetic, strong earthquake

*** Note: As products are constantly updated, please contact us for latest specifications. ***


Typical Models



ST-160130LD+80AF Vision Laser Cutting Machine
  • Cutting Area: 1600mmX1300mm (62.9″ X 51″)
  • Scan Area: 1600mmX800mm (62.9″ X 31″)
  • Laser Type: CO2 Glass laser or CO2 RF metal laser
  • Laser Power: 130W  /  150W
sublimation fabric, digital printed textile, sportswear, stripe matching & plaid matching, swimwear, cycling apparel, team uniforms, sports shoes, repetitive visual pattern fashion garment, bags, suitcase, toys, etc.
ST-160200LD+100AF Vision Laser Cutting Machine
  • Cutting Area: 1600mmX2000mm (62.9″ X 78″)
  • Scan area: 1600mmX1000mm (62.9″ X 39″)
  • Laser type: Co2 Glass laser tube or CO2 RF Metal laser tube
  • Laser power: 130W / 150W
printed sublimation fabric, sublimated polyester, large-scale banners, flags, advertising fabrics, stripe matching & plaid matching textile, sofa, upholstery, etc.

Laser Contour CUT Applications

Printed sportswear cutting

Printed sportswear cutting

Swim suit cutting

Swim suit cutting

Stripes and plaids shirt cutting

Stripes & plaids shirt cutting

Repetitive Visual Motifs Cutting

Fashion Apparel

Fashion Apparel

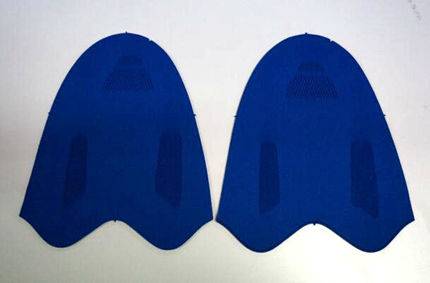

Shoes industry

Soft toy industry

Shoes industryShoes industry

Soft toy industrySoft toy industry
