Máy Laser ST(3D)-160100LD-ZJ

Liên hệ
Germany Scanlab 3D dynamic Galvo head, one time scan area could reach 400x400mm. 150W 275W 500W Co2 RF metal laser tube. Conveyor working table with auto-feeding system. Large-scale engraving cutting and hollowing on leather, shoe, denim, textile, fabric, and more flexible material.
Thông tin chi tiết

Máy Laser ST(3D)-160100LD-ZJ

Germany Scanlab 3D dynamic Galvo head, one time scan area could reach 400x400mm. 150W 275W 500W Co2 RF metal laser tube. Conveyor working table with auto-feeding system. Large-scale engraving cutting and hollowing on leather, shoe, denim, textile, fabric, and more flexible material.

May Laser ST(3D)-160100LD-ZJ

Galvanometer Laser Engraving Cutting Machine ST(3D)-160100LD-ZJ

• This machine adopts 3D dynamic galvanometer control system. 150W / 275W / 500W Co2 RF metal laser. Laser power supply and cutting speed can be adjustable, maximally energy saving.

• Germany Scanlab 3D dynamic Galvo head, one time scan area could reach 400*400mm.

• Large-scale engraving cutting and hollowing leather, shoe, denim, textile, fabric, and more flexible material.

• Conveyor working table with auto-feeding system (optional), it realizes efficient and automatic processing for fabrics in roll.

• Equipped with foot switch for easy operation. Following top and bottom exhaust fans ensure good exhaust suction effects and environment friendly processing.

• With Golden Laser self-developed software, various formats are supported according to your requirements.

• User-friendly 5 inches LCD screen CNC system and off-line motion control system with high automation.

ST(3D)-160100LD-ZJ Galvo Laser Engraving Cutting Machine

Optional

Auto-feeding system

(various types optional)

CO2 RF metal laser tube

(different laser power optional)

ST(3D)-160100LD-ZJ Galvanometer Laser Engraving Cutting Machine Technical Parameter

Laser type Co2 RF metal laser tube
Laser power 100W / 150W / 275W / 500W
Cutting area 1600mm×1000mm
Working table Conveyor working table
No-load max speed 0-420000mm/min
Positioning accuracy ±0.1mm
Motion system Offline servo system, 5 inches LCD screen
Cooling system Constant temperature water-chiller
Power supply AC220V ± 5% / 50Hz
Format supported AI, BMP, PLT, DXF, DST, etc.
Standard collocation 1 set of 1100W top exhaust fan, 2 sets of 1100W bottom exhaust fans
Optional collocation Auto-feeding system
***Note: As products are constantly updated, please contact us for latest specifications. ***

Laser Engraving Cutting Application

Laser applicable industries: shoes, home textile upholstery, furniture industry, fabric furnishings, garment accessories, apparel & clothing, automotive interiors, car mats, carpet mat rugs, luxurious bags, etc.

Laser applicable materials: Laser engraving cutting punching hollowing PU, PVC, artificial leather, synthetic leather, fur, genuine leather, imitation leather, natural leather, textile, fabric, suede, denim and other flexible materials.

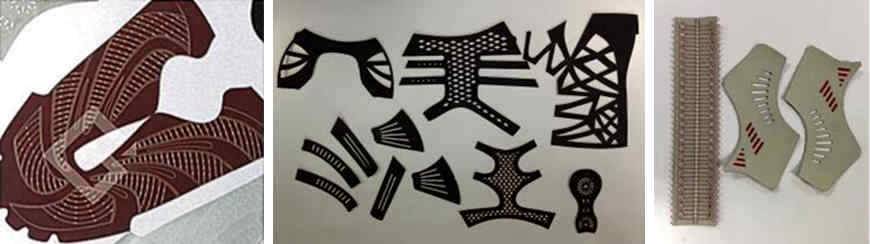

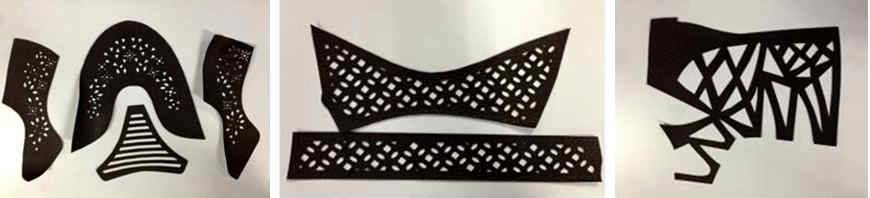

ST(3D)-160100LD-ZJ Galvo Laser Engraving Cutting Samples

Leather Shoe Laser Engraving Hollowing

Fabric Engraving Punching

Flannel Fabric Engraving

Denim Engraving

Textile Engraving

Golden Laser is one of the leading manufacturers for high-end CO2 laser machines for cutting, engraving and marking. Typical materials are textiles, fabrics, leather and acrylic, wood. Our laser cutters are designed for both small business enterprises and industrial solutions. We would be pleased to advise you!

HOW LASER CUTTING SYSTEMS WORK?

Laser Cutting Systems use high powered lasers to vaporize material in the laser beam path; eliminating hand labor and other complicated extraction methods needed for small part scrap removal.

There are two basic designs for laser cutting systems: and Galvanometer (Galvo) Systems and Gantry Systems:

•Galvanometer Laser Systems use mirror angles to reposition the laser beam in different directions; making the process relatively quick.

•Gantry Laser Systems are similar to XY Plotters.  They physically direct the laser beam perpendicular to the material that is being cut; making the process inherently slow.

While processing shoe leather material, traditional laser engraving and punching is processing materials which were already cut. These technics include complex procedures such as cutting, positioning, engraving and punching, which have problems of wasting time, wasting materials and wasting labor power.

However, Multi-function ZJ(3D)-160100LD Laser Cutting and Engraving Machine solves the above problems. It perfectly combines marker making, engraving, hollowing, punching, cutting and feeding materials together and saves 30% materials compared with traditional technics.

Why Laser Cutting and Engraving of Leather and Textile

Contactless cutting with laser technology

Precise and very filigreed cuts

No leather deformation by stress-free material supply

Clear cutting edges without fraying

Melding of cutting edges regarding synthetic leather, thus no works before and after material processing

No tool wear by contactless laser processing

Constant cutting quality

By using mechanic tools (knife-cutter), the cutting of resistant, tough leather causes heavy wear. As a result, the cutting quality decreases from time to time. As the laser beam cuts without having contact with the material, it will still remain unchangedly ‘keen’.  Laser engravings produce some kind of embossing and enable fascinating haptic effects.

Material information

Natural leather and synthetic leather will be used in various sectors. Apart from shoes and clothing, there are especially accessories that will be made of leather. That is why this material plays a specific role for designers. Besides, leather will often be used in the furniture industry and for interiors fittings of vehicles.
